How to Make 3D Wall Panels for CNC

Direct answer

From a procedural pattern to CNC-ready geometry

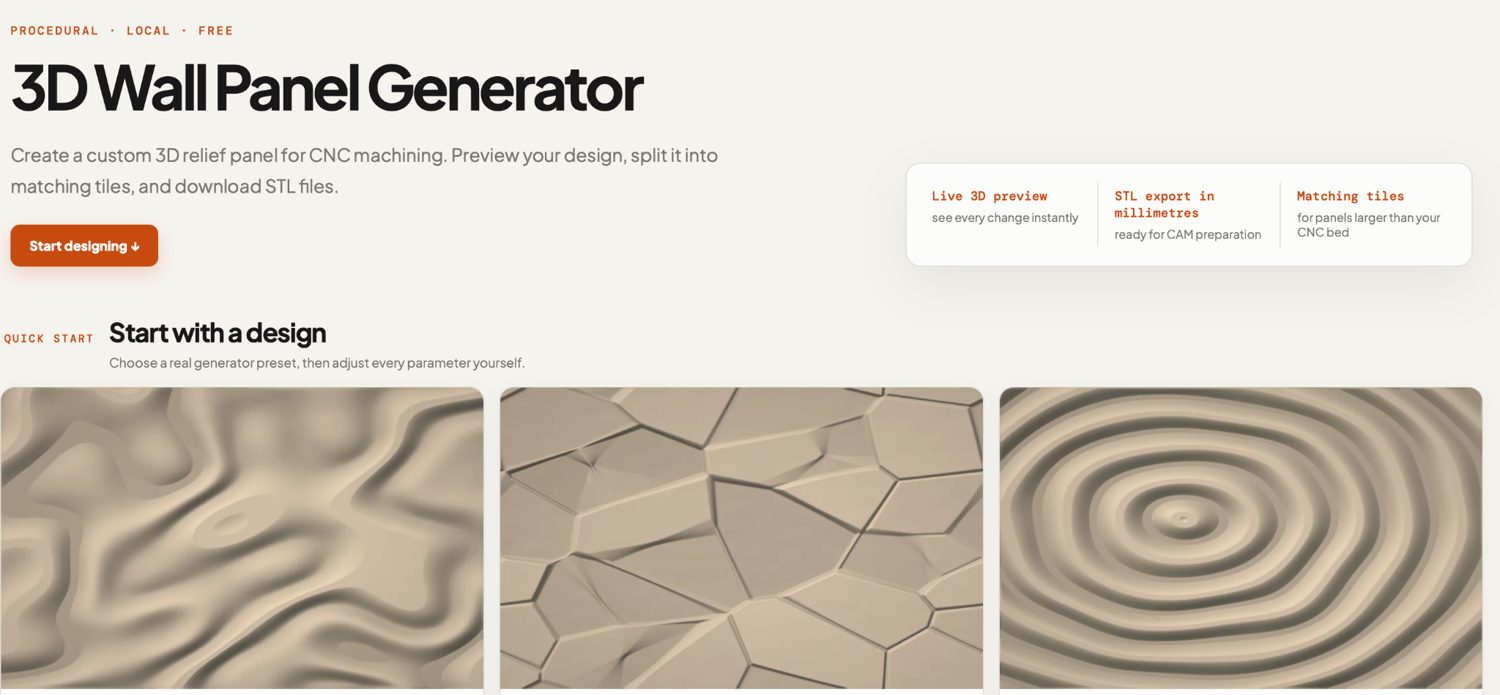

The free 3D Wall Panel Generator creates an actual relief mesh in the browser. Set the dimensions in millimetres, check the 3D preview and download a watertight binary STL. If the full wall is larger than your CNC working area, the tool can export matching segments as separate STL files with a layout PDF.

The STL is geometry, not a finished CNC program. Import it into suitable CAM software, choose tools and cutting parameters for the real material, define workholding and verify the simulation and NC output before machining.

What the tool does

Creates procedural relief geometry locally in the browser.
Controls panel width, height, base thickness and relief height in millimetres.
Exports one watertight STL or a tiled ZIP with a layout diagram.
Offers an optional AI photo matcher for finding a similar procedural style.
Includes a CAM preview, but does not export production NC or G-code.

Real workshop examples

What relief geometry must survive in production

Rendered concepts hide the practical questions. Real panels reveal them: where the seams fall, whether a cutter can reach the valleys, how the material behaves and how light changes the finished surface. These photographed examples illustrate the manufacturing decisions to consider when designing your own relief.

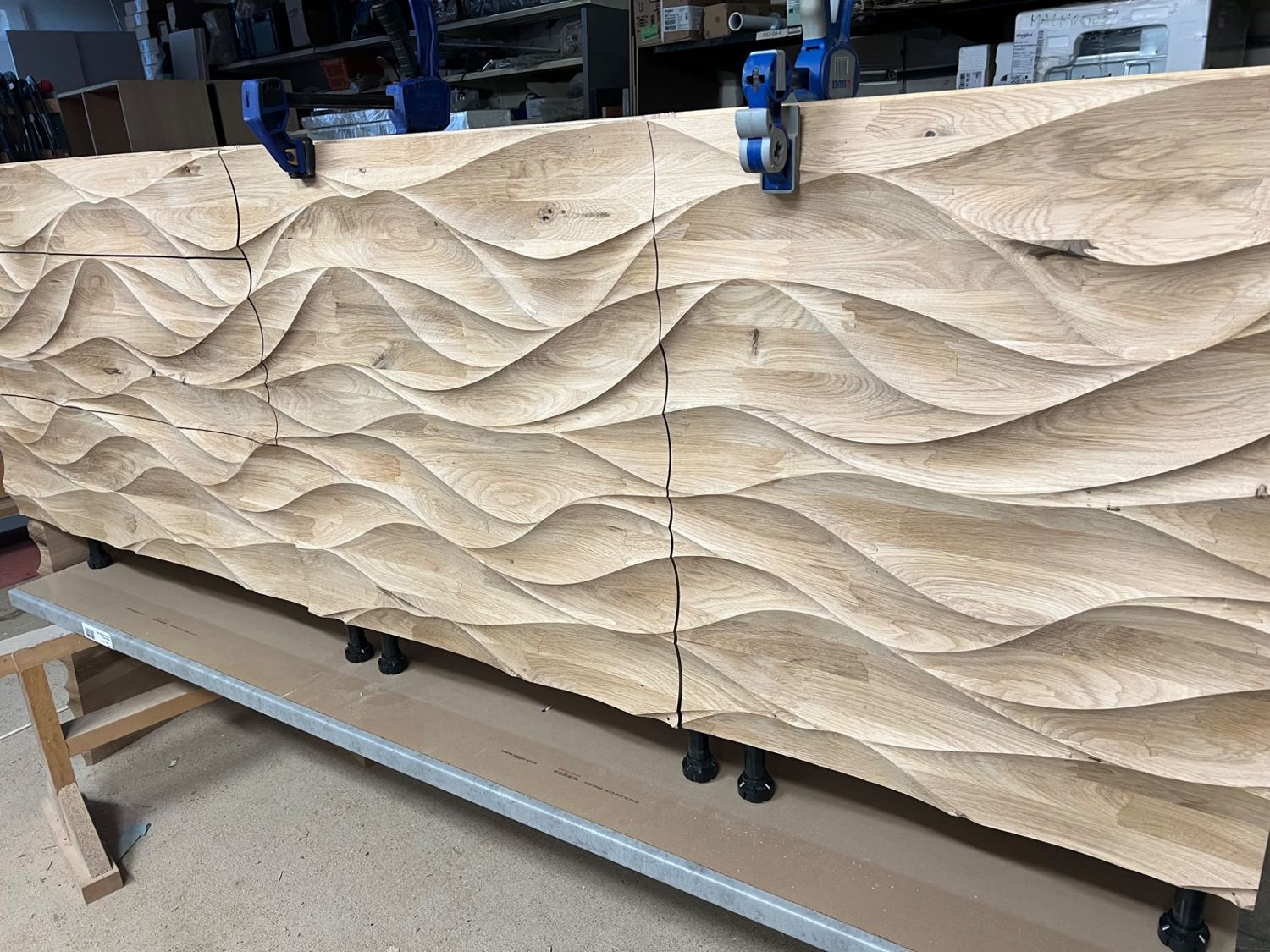

Large timber feature wall assembled from matching CNC-machined relief panels — A large wall assembled from matching panelsThe relief continues across multiple parts, so tile boundaries and installation tolerances are part of the design.

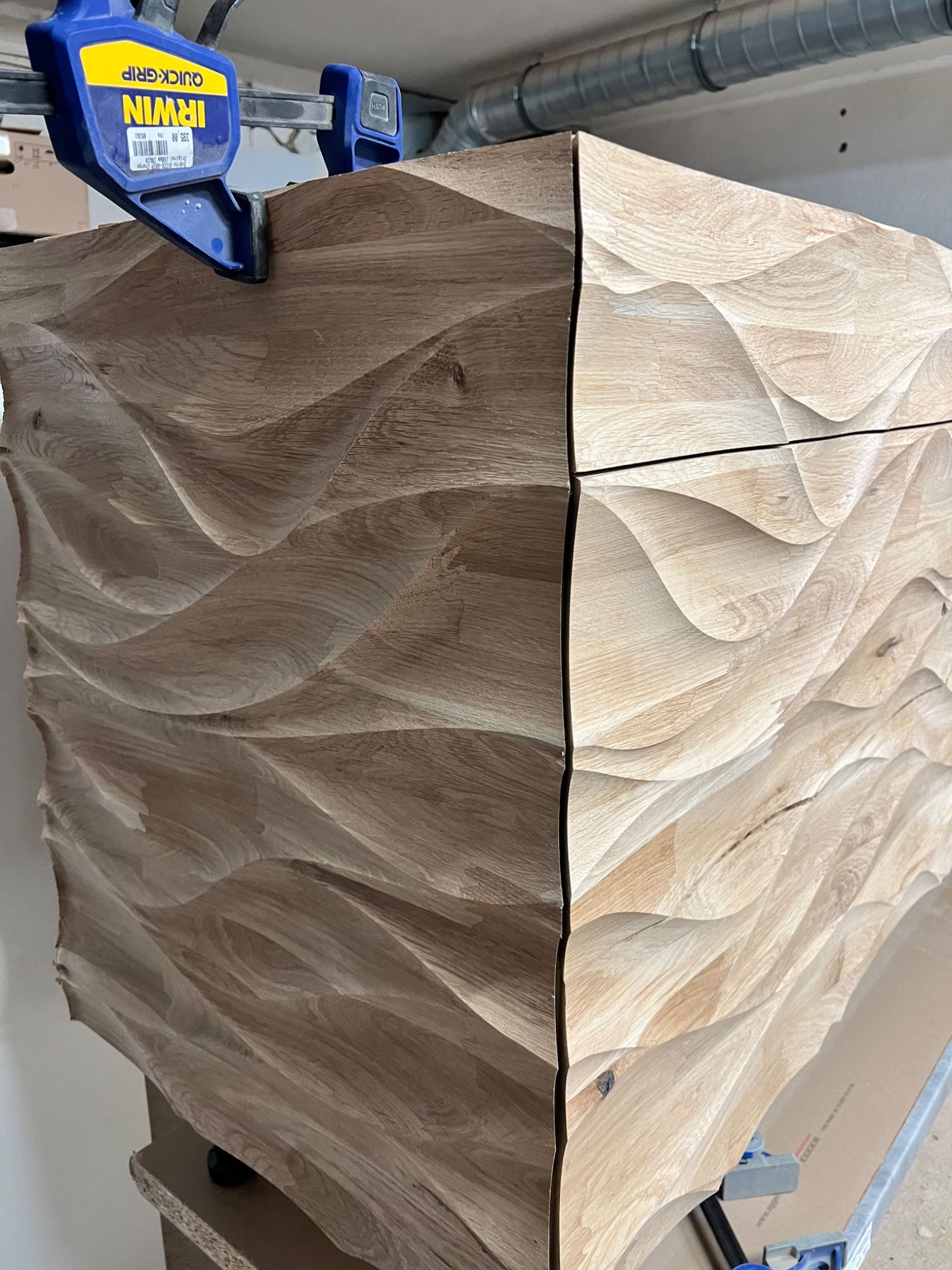

Corner detail and seams between CNC-machined timber relief panels — Corner and seam detailEven a continuous digital surface becomes separate physical parts that must align during assembly.

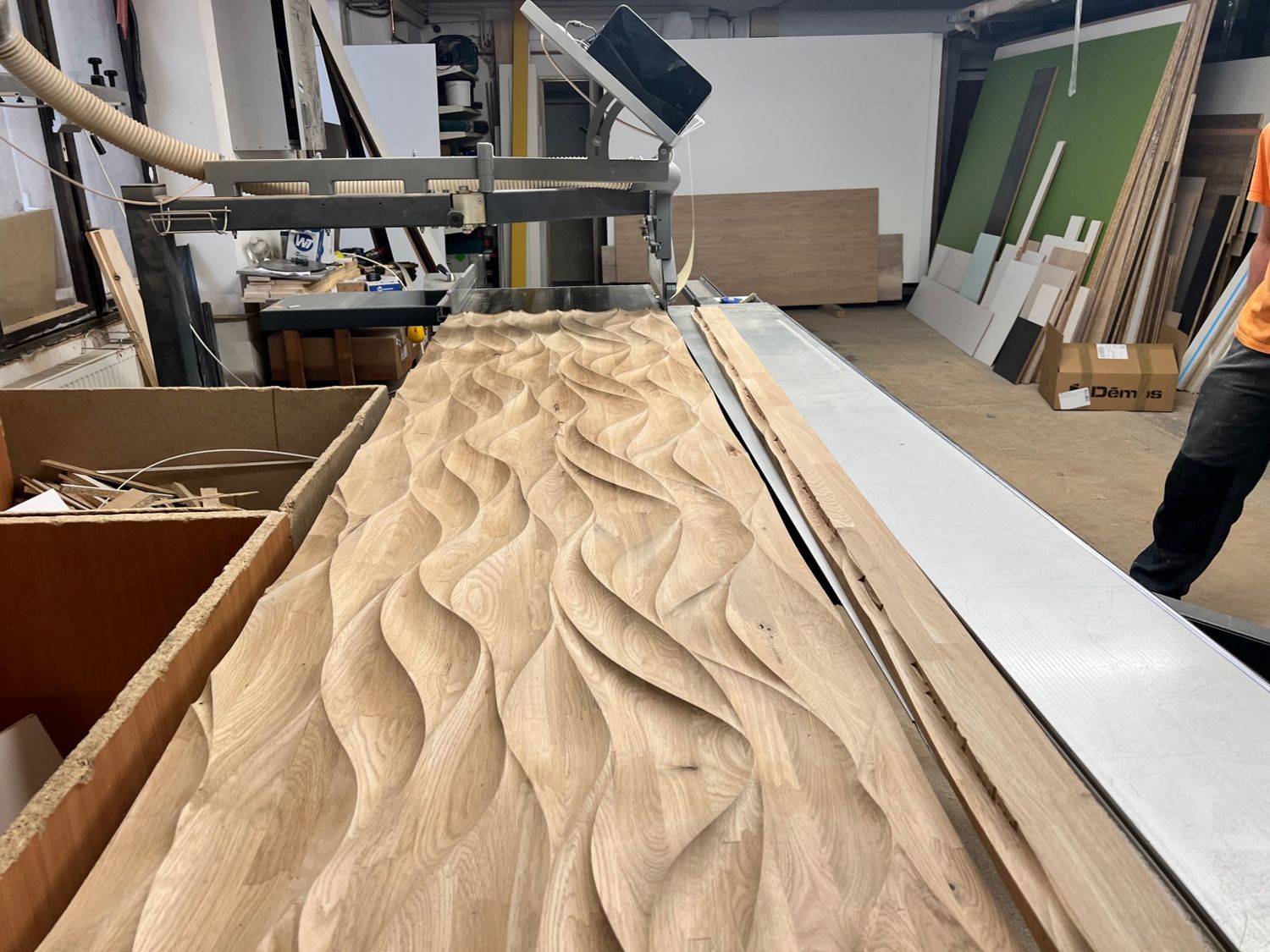

Decorative machined relief panels arranged on a workshop table — Panels on the worktablePlacing the individual panels together makes it easier to inspect the relief, orientation and transitions before installation.

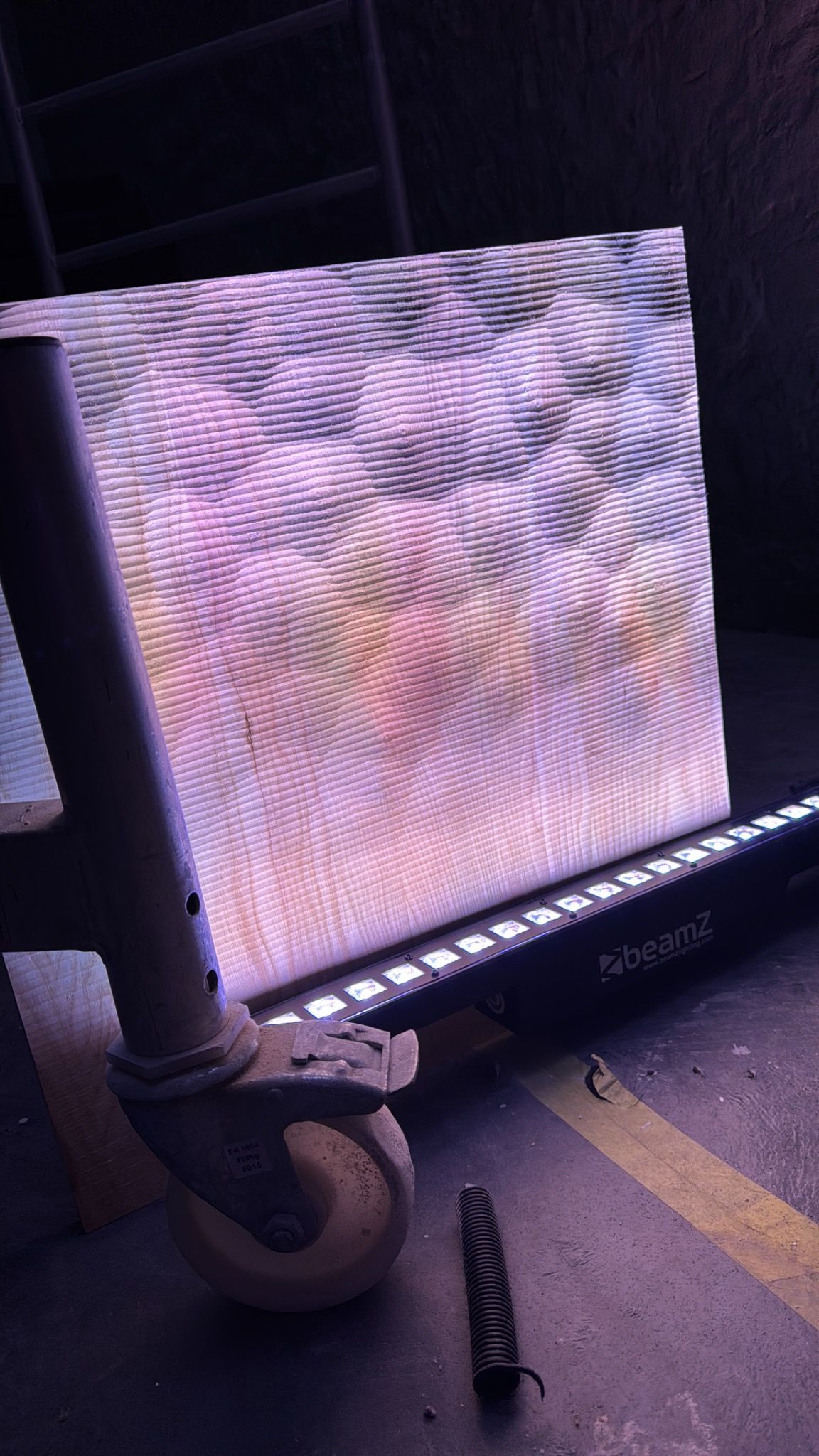

Backlit CNC-machined relief panel showing light and shadow — Light changes the resultRelief depth and spacing can look very different under grazing or backlighting.

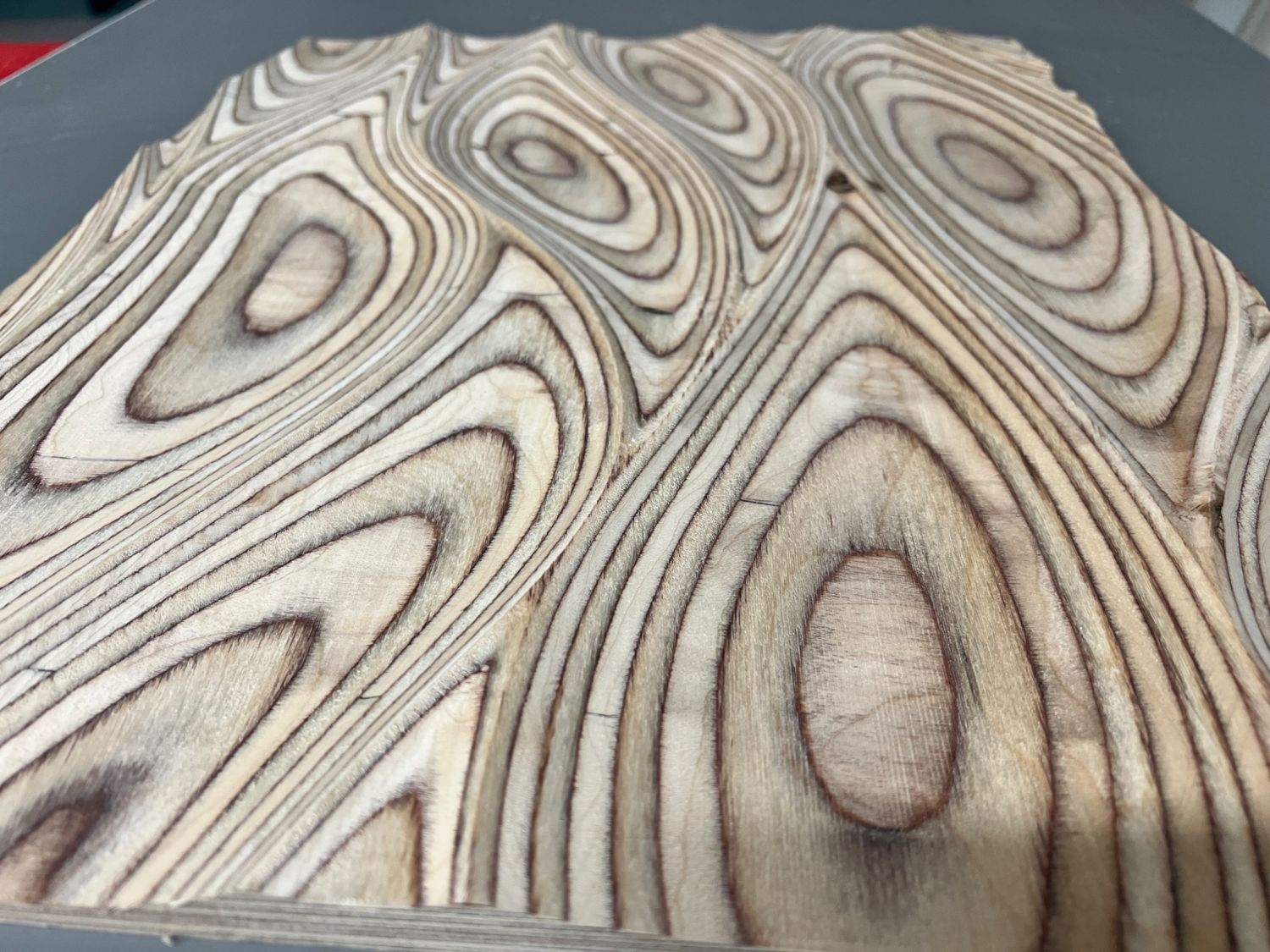

Topographic-style CNC relief machined in plywood — A different relief languageLayered plywood makes the machining depth visible and gives the topographic pattern its own character.

What the photographs demonstrate

A large design can be divided into manageable panels and still read as one surface.
Seams need deliberate placement and a realistic assembly tolerance.
Deep, narrow valleys may exceed the reach or cutting length of practical tools.
Wood species, grain direction, sanding and lighting can affect the result as much as small geometry changes.

The images are production references, not a claim that one parameter set or machining strategy suits every material and CNC machine.

Five-step workflow

From idea to a verified CNC program

Define the limits

Start with material thickness, CNC working area, available tools, tool reach and the intended panel joints.

Choose a pattern

Select a procedural style and set the panel width, height, base thickness and relief height in millimetres.

Preview and tile

Inspect the surface in 3D. If necessary, split it into segments that fit the machine and planned installation.

Export STL

Download one watertight binary STL, or a ZIP with one STL per segment and a PDF layout diagram.

Prepare CAM

Create the real toolpaths in your CAM system, then verify workholding, simulation, clearances and NC output.

Inside the generator

Adjust the physical panel, not just its appearance

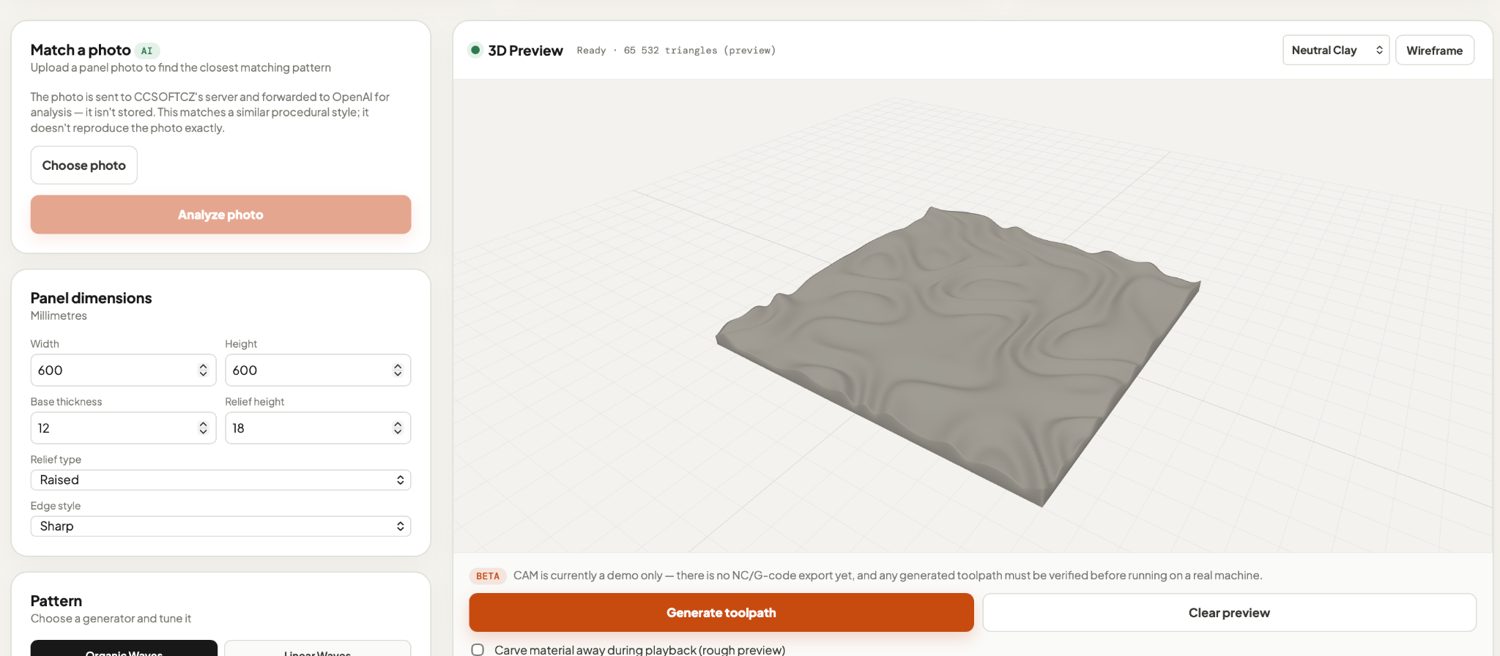

3D Wall Panel Generator workspace with panel dimensions, relief controls and a 3D preview — The actual browser workspaceDimensional controls, procedural pattern settings and the live 3D preview are shown together.

Panel dimensions and relief height determine the physical mesh. Pattern controls change the surface, while distortion, noise, smoothing, contrast and edge settings refine how the relief reads and how neighboring panels meet.

If you begin with a reference image, Match a photo can select and tune the closest available procedural generator. It suggests a similar style; it is not photo-to-3D reconstruction and does not reproduce the source exactly.

Dimensions: set the finished panel size and base thickness in millimetres.
Relief height: balance visual contrast against remaining material, tool reach and machining time.
Seamless mode: make opposite edges match when a repeating wall needs continuity.
Tiling: set the maximum segment size for the actual CNC working area.
CAM preview: inspect an illustrative ball-nose path and simulation; no NC or G-code is exported.

Before machining

Checks the browser preview cannot make for you

Design and geometry
Units	Confirm that STL import uses millimetres and that the finished dimensions match the intended panel.
Remaining stock	Keep enough material below the deepest relief for the stock, installation method and expected service conditions.
Tool access	Compare valley width and depth with the cutter diameter, flute length, holder clearance and machine travel.
Tile layout	Check part labels, seam positions, grain direction, machining orientation and assembly tolerances.

CAM and production
Strategy	Choose roughing and finishing operations for the material, geometry, machine and required surface quality.
Finishing	For ball-nose finishing, stepover strongly affects both machining time and visible scallop height.
Workholding	Verify clamps, vacuum support, stock movement and tool clearance across the complete toolpath.
Proof-out	Simulate in the production CAM system, inspect the posted NC program and use the machine's normal safe prove-out procedure.

Important: the generator does not validate structural capacity, fire performance, installation suitability or regulatory compliance. Those decisions depend on the material, construction, location and applicable requirements.

FAQ

Questions about the generator and CNC workflow

Is the 3D Wall Panel Generator free?

Yes. There is no signup and no paid tier. The generator is free to use in a web browser.

What does the generator export?

It exports a closed, watertight binary STL solid dimensioned in millimetres. A tiled export downloads a ZIP with one STL per segment and a one-page PDF layout diagram.

Can I use the STL in Autodesk Fusion?

Yes. The STL can be imported into Autodesk Fusion or other software that supports mesh geometry. Machining setup and verification remain separate CAM tasks.

Can it split a large wall into smaller matching panels?

Yes. Set the maximum segment width and height and the generator divides the design into a grid whose adjoining edges match. Each segment is exported as a separate STL.

Can I start from a reference photo?

Yes. The optional Match a photo feature uses AI to select and tune the closest procedural generator. It suggests a similar style; it does not reconstruct or reproduce the photographed panel exactly.

Is my design uploaded anywhere?

Geometry generation, the 3D preview and STL export run locally in the browser. Only the optional Match a photo feature uploads the selected photo to CCSOFTCZ and forwards it to OpenAI for analysis; the photo is not stored.

Does the tool generate NC or G-code?

No. The CAM area is a toolpath preview and simulation only. It does not export NC or G-code. Create and verify the production toolpaths and NC program in suitable CAM software for the actual machine.

Try it yourself

Build your first CNC relief panel

Start with one preset, enter the real panel size and inspect the relief with machining in mind. Export a test STL and validate the complete CAM process on suitable sample material before committing to a full wall.

Launch the free generator Open the free 3D viewer

A useful first test

Use a small panel and moderate relief depth.
Confirm the imported STL scale.
Check tool and holder clearance.
Machine sample material and inspect the finish under the intended lighting.
